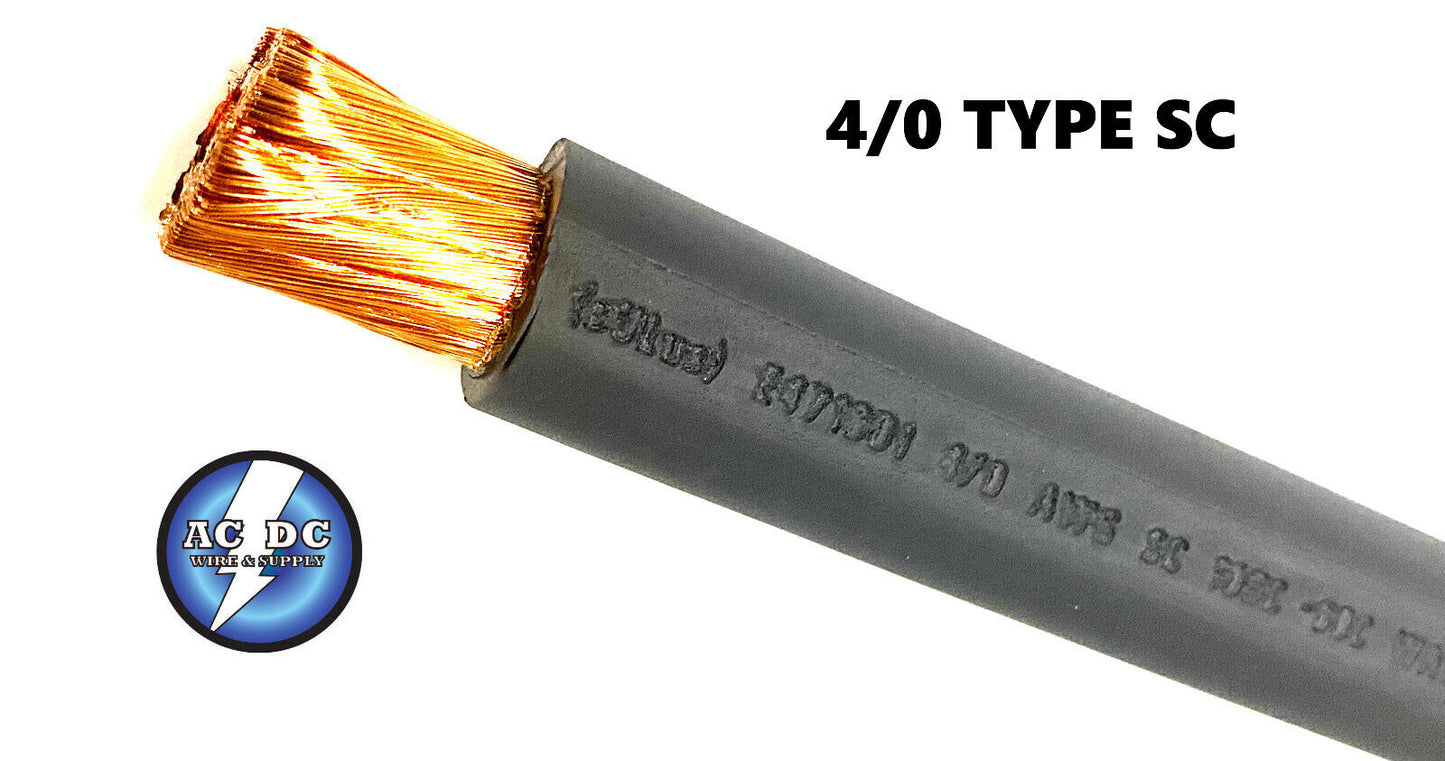

4/0 AWG Type SC Entertainment and Stage Lighting Cable 100 FT

4/0 AWG Type SC Entertainment and Stage Lighting Cable 100 FT

Type SC Entertainment and Stage Lighting Cable. 4/0 AWG

Features
AWG: 4/0
STRANDS: 2109 / 30 CLASS K
405 AMPS


bare ASTM Class K copper
• 600 V
• Wrapped paper separator
• Insulated with low-smoke, halogen-free EPDM compound
• Jacketed with proprietary CPE compound
• Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil,
sunlight, and water
• tested 60°C (140°F) oil resistant temperature rating
• tested 720 hours sunlight resistance rating
• -50°C (-58°F) to 105°C (221°F) Dry; 75°C (167°F) WetTemperature RangeTemperature Range
Standards & Certifications
Industry Approvals
• Listed Type SC
• 1680 (Stage and Lighting Cable)
• 44 and 1581 LISTED
• Listed Type SC
• NFPA 70/NEC Arts. 400, 520, 525, and 530
• FT-5 and VW-1
• CSA C22.2 No. 96 and 2556
• ASTM B3, B49, B172, and B263
• MSHA Compliant
• RoHS and Prop 65 Compliant
