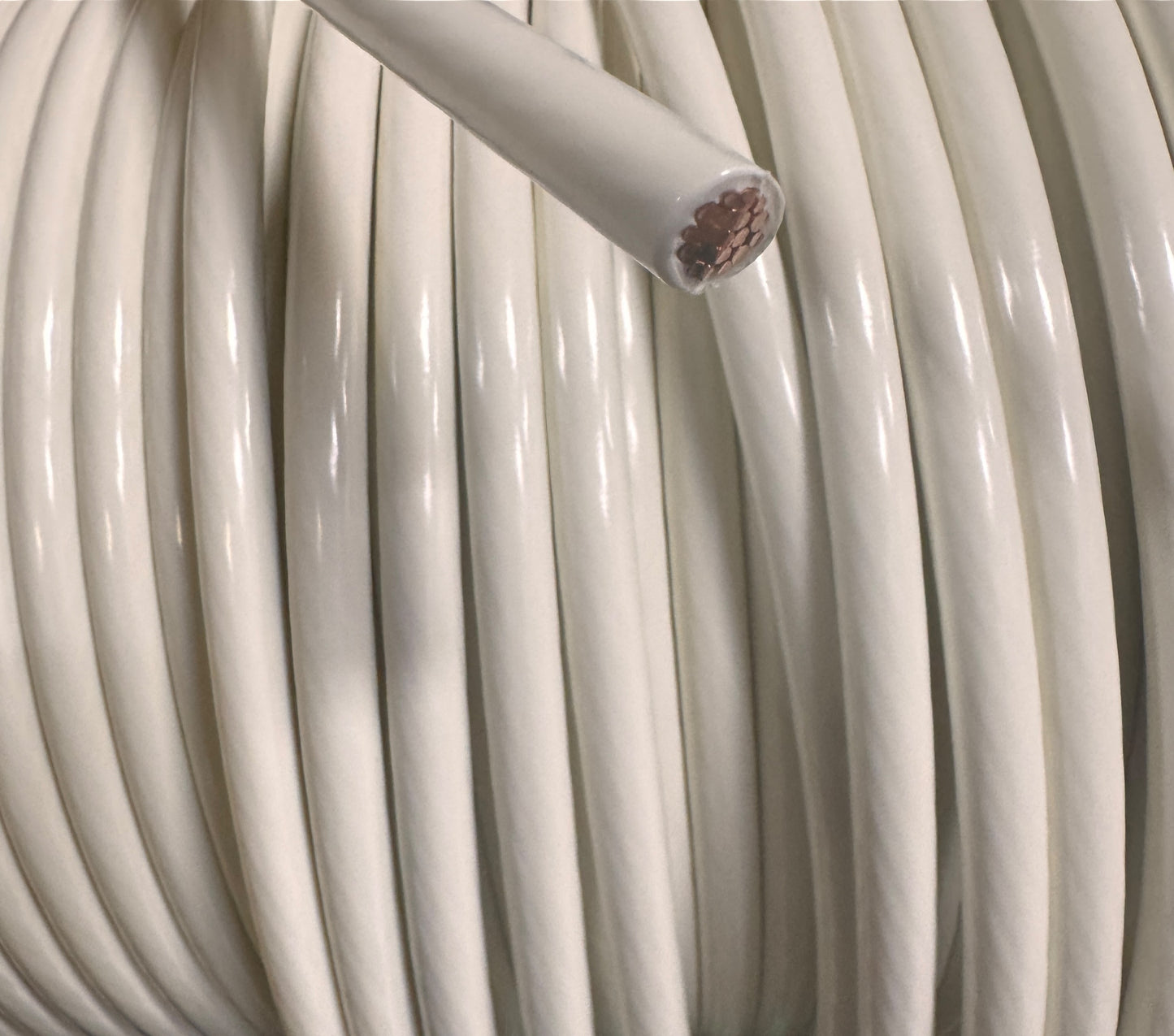

4 AWG THHN/THWN-2 Wire (BY THE FOOT)

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to Max 10,000'.

Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). 4 AWG THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Known As:
4 AWG Copper wire, 4 AWG THWN-2, 4 AWG Building Wire, hook up wire, conduit wire,  lighting wire, nylon copper wire, construction cable.

Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers

Construction:
Conductors:
Solid, uncoated copper conductors per ASTM-B3
Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8

4 AWG THHN/THWN-2 Specifications:

Size: 4 AWG
Number of Strands: 19
Cross Section Area (mm2): 21.2
PVC Insulation Thickness (Conductor): 1.020 mm / 0.040 inches
Nylon Jacket Thickness: 0.150 mm / 0.006 inches
Outside Diameter: 8.06 mm / 0.317 inches
Weight: 0.166 lbs per ft
Allowable Ampacity: 70 Amps at 60ºC / 85 Amps at 75ºC / 95 Amps at 90ºC
