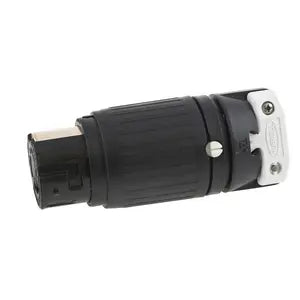

HUBBELL HBL7764C Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA

• General

• Application: Heavy Duty Industrial

• Catalog Number: HBL7764C

• Color: Black, White

• Cord Range

  .830"-1.250"(21.08-31.75)

• Environmental Conditions

  Indoor Dry Unless Protected By Additional Means

• EU RoHS Indicator

  No

• Insulation

  Insulated Body

• Item Type

  50A Insulgrip® Connector

• Material

  Nylon

• Material - Mounting Hardware

  Cord Mounted

• Number Of Poles

  3-Pole

• OEM Brand Name

  Hubbell Wiring Device-Kellems

• Operating Temperature

  Maximum continuous 75°C and minimum -40°C without Impact

• Performance

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only

• Specifications

  • Contacts - Brass
  • Cord Grip - Polyester
  • Housing - Nylon
  • Terminal Retainer - Thermoplastic polyester
  • Terminal Screws - Stainless Steel

• Type

  Connector Body

• UPC

  783585237848
