AC/DC WIRE AND SUPPLY

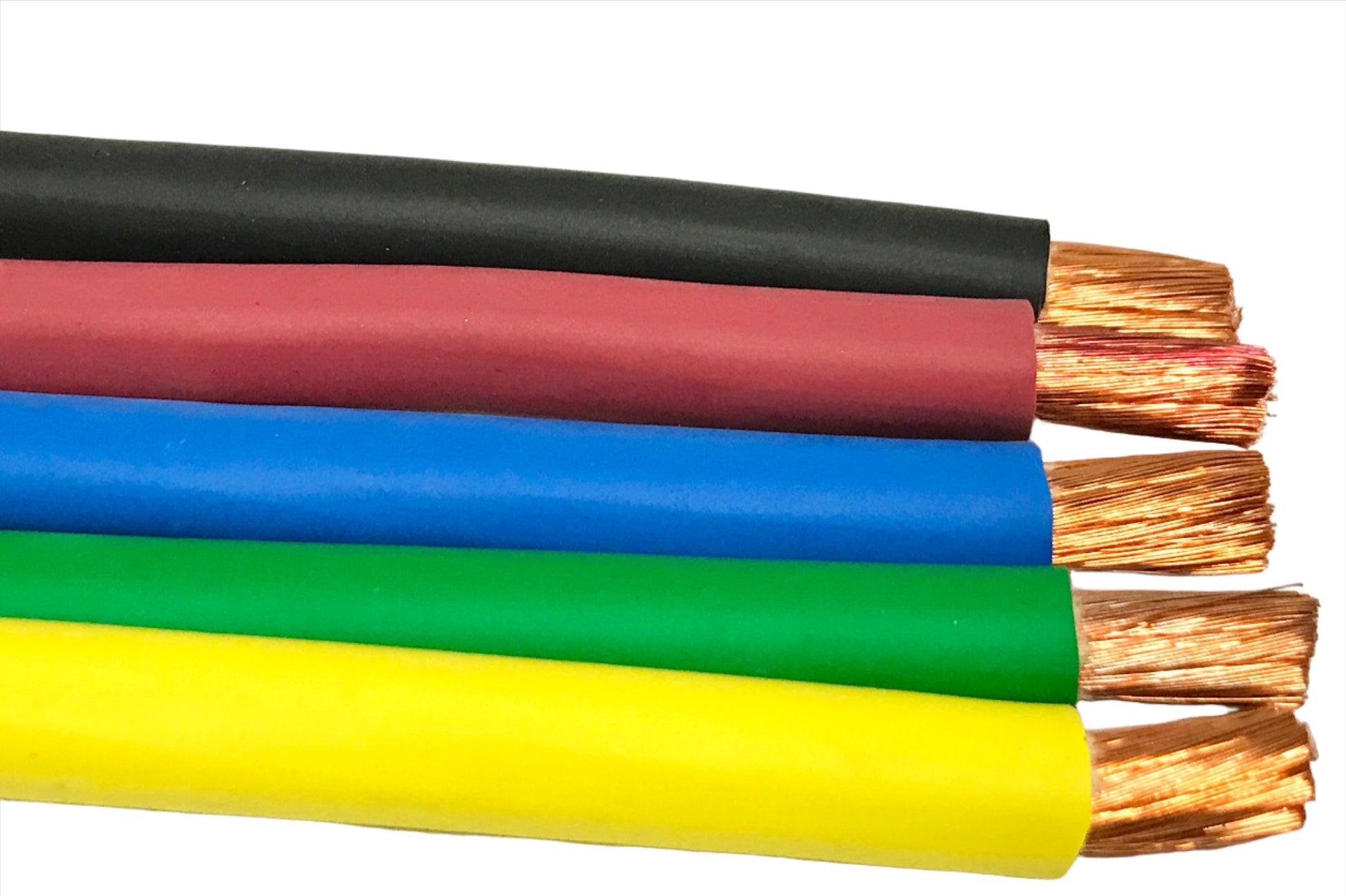

SAE J1127 Welding Lead & Battery Cable Copper Wire MADE IN USA CHOOSE AWG SIZE & COLOR

SAE J1127 Welding Lead & Battery Cable Copper Wire MADE IN USA CHOOSE AWG SIZE & COLOR

Regular price $0.85 USD
Regular price $0.00 USD Sale price $0.85 USD
Sale Sold out
Shipping calculated at checkout.
Gauge (AWG) Size
Wire Color

CHOOSE THE AWG SIZE AND COLOR - SOLD PER FT IN ONE LENGTH CUT UNLESS REQUESTED

Bare Copper Stranding

Insulation Material EPDM Separator/Wrap Tape Separator


Number of Conductors 1

Temperature Rating -50C to 105C

Operating Voltage 600V Max

AMPS:100

Applications: Welding - Car Audio - Battery Installs - Solar - Battery Banks - Power Cable


May used in accordance with National Electric Code Article 630 Electric Welders.

Designed for use as welding leads from the secondary side of the power source - typical of arc welders and welding generators

Additional uses may include flexible lead cable; electrode to welder unit, battery cables, and temporary and permanent lead cables

Industry Approvals:

ROHS Compliant


FEATURES

* CONDUCTORS: CLASS K 30 GAUGE COPPER

* INSULATION: EPDM JACKET AND PAPER SEPARATOR

* TEMP RANGE: -50 C TO 105 C

* RATED 600V


* MEETS SAE J1127

* RESISTS ABRASION, CUT, TEARS, FLAME, GREASE, OIL AND ALSO WATER.

* NATIONAL ELECTRICAL CODE ARTICLE 630 ELECTRIC WELDERS.

* 600V RATED

* ROHS COMPLIANT

* VW-1 FLAME TEST PER UL2556

* SUITABLE FOR BATTERY CABLE PER UL558 & UL583

* MADE IN THE USA.
