AC/DC WIRE AND SUPPLY

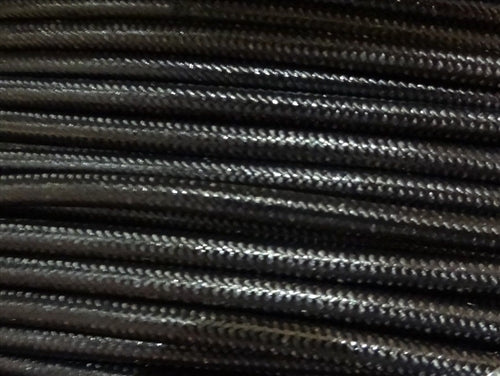

SRML BLACK 10 AWG FIBER GLASS BRAID APPLIANCE HI TEMP WIRE MOTOR LEAD PER FT

SRML BLACK 10 AWG FIBER GLASS BRAID APPLIANCE HI TEMP WIRE MOTOR LEAD PER FT

Regular price $0.97 USD
Regular price Sale price $0.97 USD
Sale Sold out
Shipping calculated at checkout.

SRML 10 AWG

FIBER GLASS BRAID APPLIANCE HIGH TEMP WIRE

SOLD PER FT

CONDUCTOR: Tinned, annealed copper per ASTM B-33, Class H stranded per ASTM B-173 or Class K stranded per ASTM B-174
INSULATION: Silicone rubber
OVERALL JACKET: Braided-glass yarn treated with high-temperature finish
STANDARDS: Sizes 18-6 AWG meet the UL requirements for Styles 3069, 3070, 3101, 3123, 3127 (150°C), sizes 4-4/0 meet the UL requirements for Styles 3071, 3074, 3075, 3125, 3172, 3231 (200°C), sizes 18-6 AWG also meets the CSA requirements for SEWF-2 (150°C), sizes 4-4/0 meet the requirements for SEW-2 (200°C)
AMPACITY: Based on three single insulated conductors in raceway or cable with an ambient temperature of 40°C per 2008 NEC 310.18
VOLTAGE: 600 V
