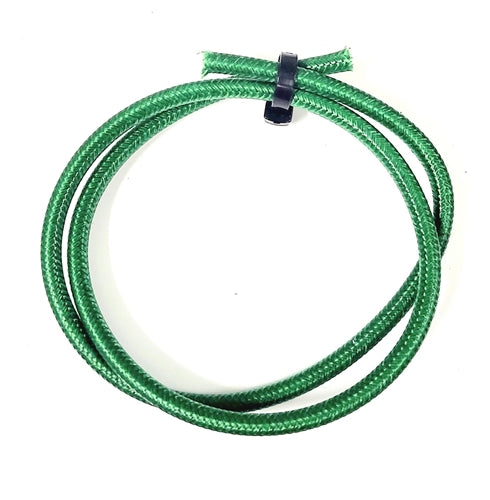

SRML GREEN 10 AWG FIBER GLASS BRAID APPLIANCE HI TEMP WIRE MOTOR LEAD

SRML 10 AWG

FIBER GLASS BRAID APPLIANCE HIGH TEMP WIRE

SOLD PER FT

CONDUCTOR: Tinned, annealed copper per ASTM B-33, Class H stranded per ASTM B-173 or Class K stranded per ASTM B-174
INSULATION: Silicone rubber
OVERALL JACKET: Braided-glass yarn treated with high-temperature finish
STANDARDS: Sizes 18-6 AWG meet the UL requirements for Styles 3069, 3070, 3101, 3123, 3127 (150°C), sizes 4-4/0 meet the UL requirements for Styles 3071, 3074, 3075, 3125, 3172, 3231 (200°C), sizes 18-6 AWG also meets the CSA requirements for SEWF-2 (150°C), sizes 4-4/0 meet the requirements for SEW-2 (200°C)
AMPACITY: Based on three single insulated conductors in raceway or cable with an ambient temperature of 40°C per 2008 NEC 310.18
VOLTAGE: 600 V
