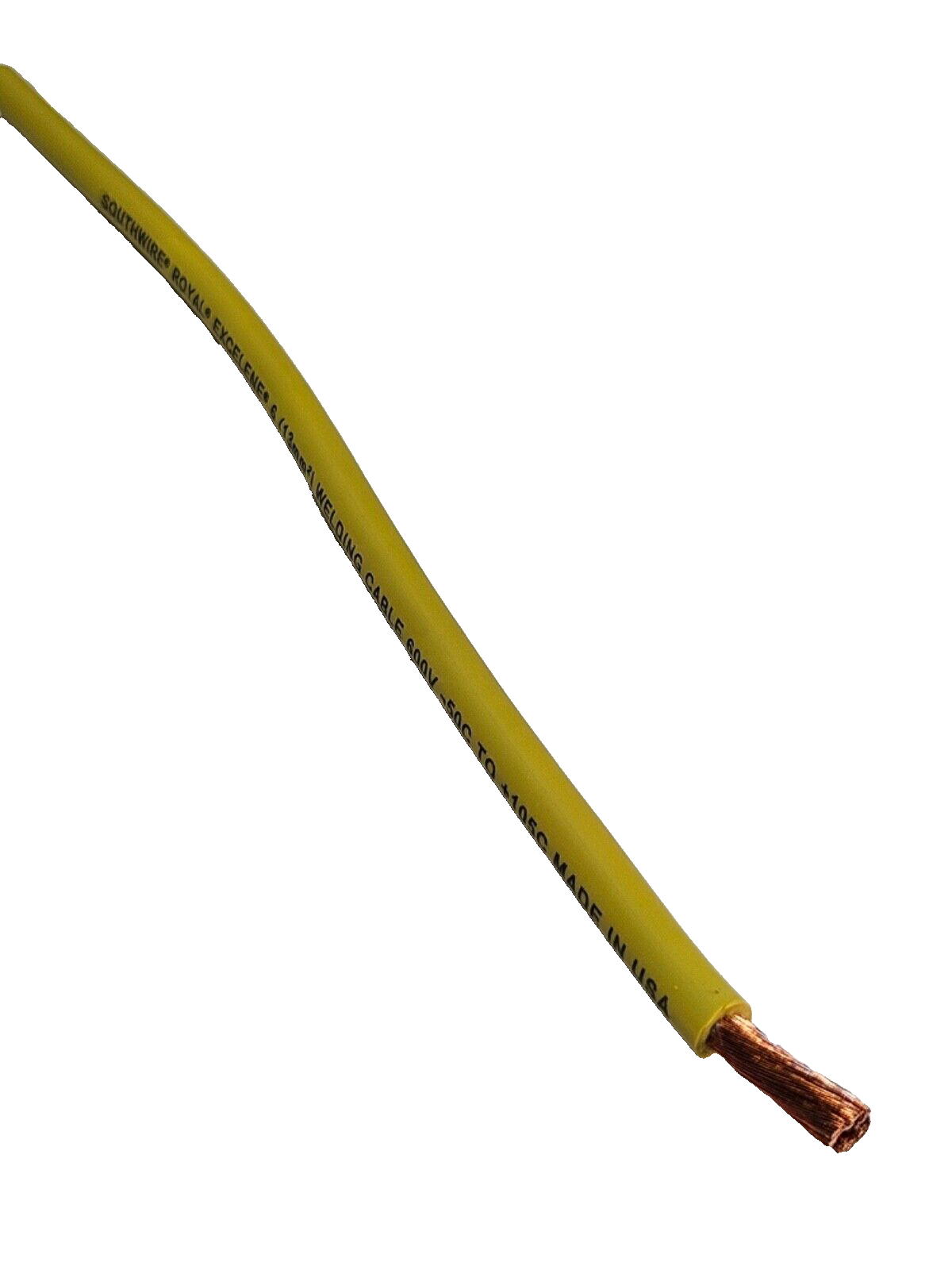

5 FT 6 gauge AWG EXCELENE 105c COPPER BATTERY WELDING CABLE YELLOW MADE IN USA

5 FT EXCELENE YELLOW WELDING BATTERY CABLE

CONSTRUCTION: This cable consists of one bare copper

conductor with integral insulation and jacket.

APPLICATION: Welding Cable Applications

Construction Parameters:

Conductor #6 Bare Copper

Stranding 7x37/0.0098 (13mm2)

Insulation Material EPDM

Separator/Wrap Tape Separator

Insulation Thickness 0.065'' Nom.

Insulated Conductor Diameter 0.305" Nom.

Number of Conductors 1

Electrical Properties:

Temperature Rating -50OC to 105OC

Operating Voltage 600V Max

DC Resistance per Conductor @ 20OC 0.440 Ohms/1M

Features:

Temperature Rating -50° C to 105° C

Ethylene Propylene Rubber (EPR)

Annealed stranded bare copper per ASTM B-172

Foot marked for easy length identification

Ozone, sun, weather, and chemical resistant

Applications:

May used in accordance with National Electric Code Article

630 Electric Welders.

Designed for use as welding leads from the secondary side of

the power source - typical of arc welders and welding

generators

Additional uses may include flexible lead cable; electrode

to welder unit, battery cables, and temporary and permanent

lead cables

Industry Approvals:

ROHS Compliant
